技术参数 Technical Parameter

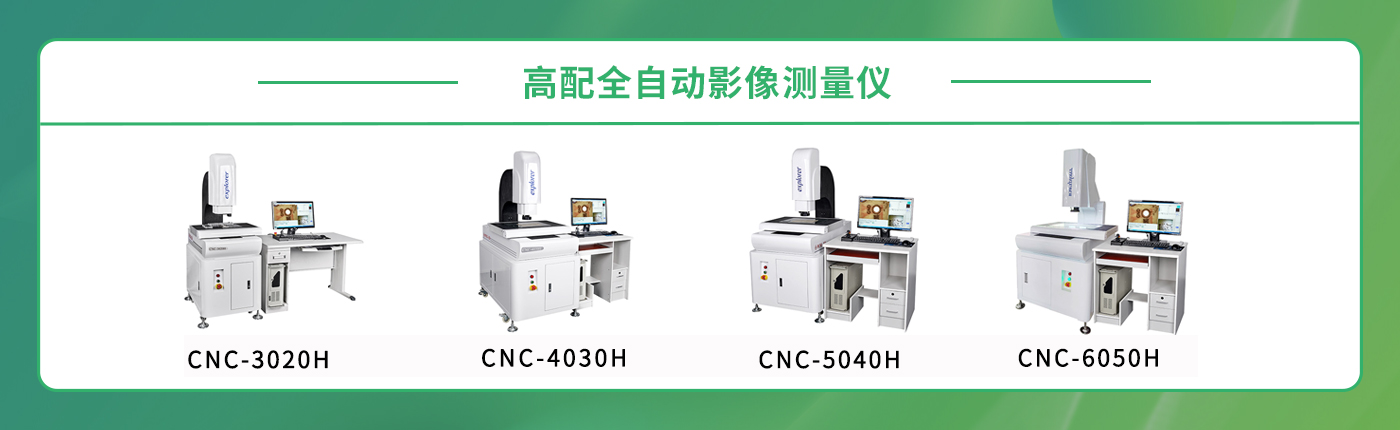

仪器型号Machinemodel |
CNC-3020H |
CNC-4030H |
CNC-5040H |
|
工作台 Work table |
X/Y轴行程 X/Y axis travel |
300*200 |
400*300 |
500*400 |
Z轴行程 Z axi travel |
有效空间245mm,调焦行程200mm,工作距离90mm。 Effective space is 245mm,focusing stroke is 200mm,and working distance is 90mm. |
|||
金属台尺寸 Mental table dimension |
450*350 |
550*450 |
700*600 |
|
玻璃台尺寸 Glass table dimension |
330*230 |
430*330 |
530*430 |
|
传动型式 Drive type |
X/Y/Z轴THK精密线性导轨/THK研磨级滚珠螺杆 X/Y/Z axis THK precision linear guide/THK grinding grade ball screw |
|||
测量伺服驱动系统 Measuring servo drive system |
海德汉金属贴片尺分辨率:X/Y/Z轴0.0001mm(0.lum进口金属贴片尺) HEIDENHAIN metal patch resolution:X/Y/Z axis 0.0001mm(0.lum imported metal patch ruler) |
|||
测量精度:≤2.5um+L/200重复精度:≤2.5um Measurement accuracy:≤2.5um+L/200 Repeatability:≤2.5um |
||||
X/Y/Z三轴台达闭环高性能伺服电机,双重闭环控制系统 X/Y/Z three-axis Delta closed-loop high-performance servo motor,double closed-loop control system |
||||
影像系统 Image system |
摄像机:高清数字2/3320万相机视频放大倍数:30-190X Camera:Hd digital 2/33.2 milion video magnification 30-190x |
|||
镜头:WM高清变倍镜头/连续放大倍率0.7-5.0X Lens:WM HD zoom lens/continuous magnification 0.7-5.0X 可配0.5x物镜,总放大倍率:15-95X Can be equipped with 0.5xobjective lens, total magnification:15-95X 可配2x物镜,总放大倍率:60-380X Can match 2xobjective lens,total magnification:60-380X |
||||
光源系统Light system |
表面光源+投射光源冷光源+同轴光,寿命长,亮度可调 Surface light and projection light,cold light.long life,brightness adjustable |
|||
仪器外形尺寸 Machine external dimension |
750*850*1650 |
850*900*1650 |
950*1050*1650 |
|
仪器重量(kg) Machine weight(kg) |
300 |
380 |
450 |
