技术参数 Technical Parameter

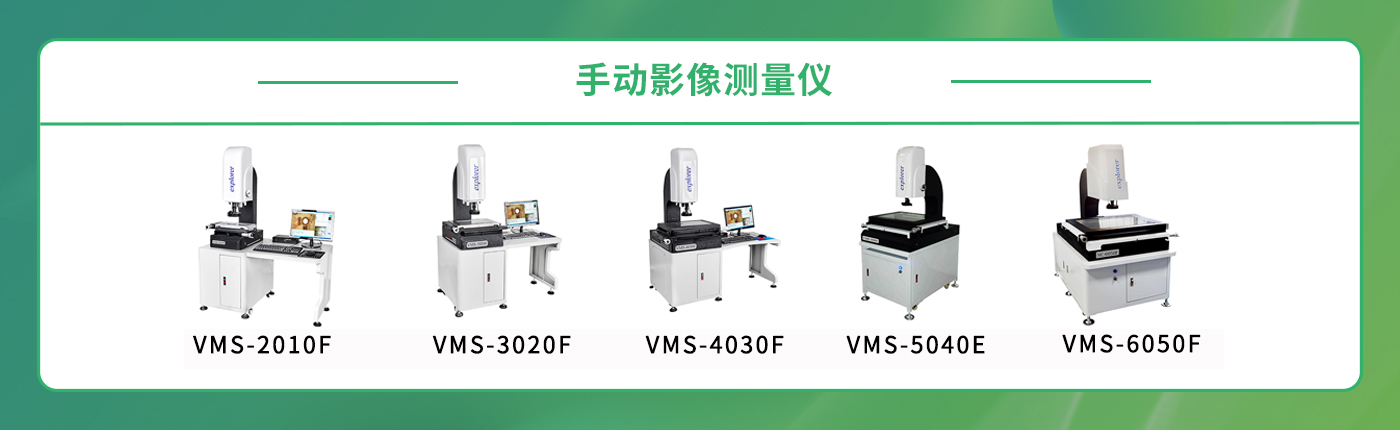

仪器型号Machine model |
VMS-2010F |
VMS-3020F |
VMS-4030F |
VMS-5040F |
|
工作台 Work table |
X/Y轴行程 X/Y axis travel |
200*100 |
300*200 |
400*300 |
500*400 |
Z轴行程 Z axi travel |
有效空间245mm,调焦行程200mm,工作距离90mm。 Effective space is 245mm,focusing stroke is 200mm,and working distance is 90mm. |
||||
金属台尺寸 Mental table dimension |
350*220 |
450*350 |
550*450 |
700*600 |
|
玻璃台尺寸 Glass table dimension |
230*130 |
330*230 |
430*330 |
530*430 |
|
传动型式 Drive type |
X/Y光杆传动,Z轴光轴传动X/Y axis rod drive, Z axioptical axi drive |
||||
测量伺服驱动系统 Measuring servo drive system |
光学尺分辨率:X/Y/Z轴0.0005mm(0.5um) Optical scale resolution:X/Y/Zaxis 0.0005mm(0.5um) |
||||
测量精度:≤3um+L/200重复精度:≤3um Measuring accuracy:≤3um+L/200 Repeatability accuracy:≤3um |
|||||
多功能数据处理器可测点,线,圈,圆,角度等。 Versatile data processor can measures points,lines,loops,circles,angles,etc |
|||||
影像系统 Image system |
摄像机:日本SONY CCD视频放大倍数:20-240x 测量范围:9.0mm-1.35mm Camera:Japan SONY CCD Video magnification:20-240x Measurement range 9.0mm-1.35mm |
||||
镜头:WM高清变倍镜头/连续放大倍率0.7-4.5x Len:WM HD zoom lens/continuous magnification 0.7-4.5x 可配0.5x物镜,总放大倍率:10-120x Can be equipped with 0.5xobjective lens, total magnification:10-120x 可配2x物镜,总放大倍率:40-480x Can be equipped with 2x objective lens, total magnification:40-480x |
|||||
光源系统Light system |
表面光源与投射光源冷光源,寿命长,亮度可调 Surface light and projectionlight,cold light,long life,brightness adjustable |
||||
仪器外形尺寸 Machine external dimension |
500*700*1100 |
600*750*1100 |
700*900*1150 |
850*1050*1200 |
|
仪器重量(kg) Machine weight(kg) |
150 |
180 |
200 |
240 |
长度单位:mm
Length unit:mm
