技术参数 Technical Parameter

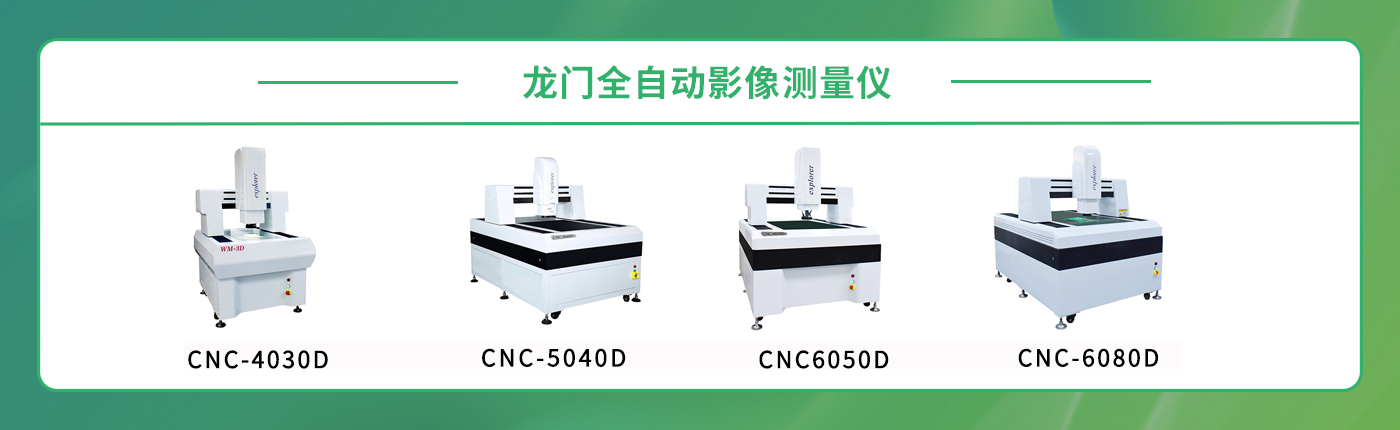

仪器型号Machine model |
WM-CNC-4030D |
WM-CNC-5040D |
WM-CNC-6050D |
WM-CNC-6080D |
|
工作台 Work table |
X/Y轴行程 X/Y axis travel |
400*300 |
500*400 |
600*500 |
800*600 |
Z轴行程 Z axi travel |
有效空间245mm,调焦行程200mm,工作距离90mm. Effective space is 245mm,focusing stroke is 200mm.and working distance is 90mm. |
||||
金属台尺寸 Mental table dimension |
600*500 |
700*600 |
800*700 |
1000*800 |
|
玻璃台尺寸 Glass table dimension |
500*400 |
600*500 |
700*600 |
900*700 |
|
传动型式 Drive type |
X/Y/Z轴精密线性导轨/研磨级滚珠螺杆 X/Y/Z axis precision linear guide/grinding ball screw |
||||
测量伺服驱动系统 Measuring servo drive system |
金属贴片尺分辨率:X/Y/Z轴0.0002mm(0.2um) Metal patch resolution:X/Y/Z axis 0.0002mm(0.2um) |
||||
测量精度:≤3um+L/200重复精度:≤3um Measurement accuracy:≤3um+L/200 Repeatability:≤3um |
|||||
X/Y/Z三轴台达高性能伺服电机,双重闭环控制系统 X/Y/Z three-axis Delta high performance servo motor, double closed loop control system |
|||||
影像系统 Image system |
摄像机:1/2高清数字相机,视频放大倍数:28-165× Camera:1/2 HD digital camera, video magnification: 28-165x |
||||
镜头:WM高清变倍镜头/连续放大倍率0.7-5.0X Lens:WM HD zoom lens/continuous magnification 0.7-5.0X 可配0.5x物镱,总放大倍率:14-83X Can be equipped with 0.5xobjective lens, total magnification:14-83X 可配2x物镜,总放大倍率:56-330X Can be equipped with 2x objective lens, total maghincation:56-330× |
|||||
光源系统Light system |
表面光源与投射光源冷光源,寿命长,亮度可调 Surface light and projection light,cold light,long lire,brigntness adlustabie |
||||
仪器外形尺寸 Machine external dimension |
700*900*1650 |
1100*1000*1650 |
1300*1600*1650 |
1300*1800*1650 |
|
仪器重量(kg) Machine weight(kg) |
500 |
650 |
800 |
1000 |
长度单位:mm
Length unit:mm
